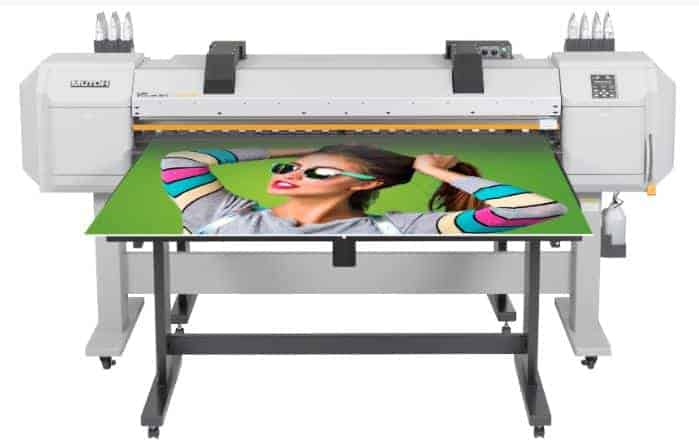

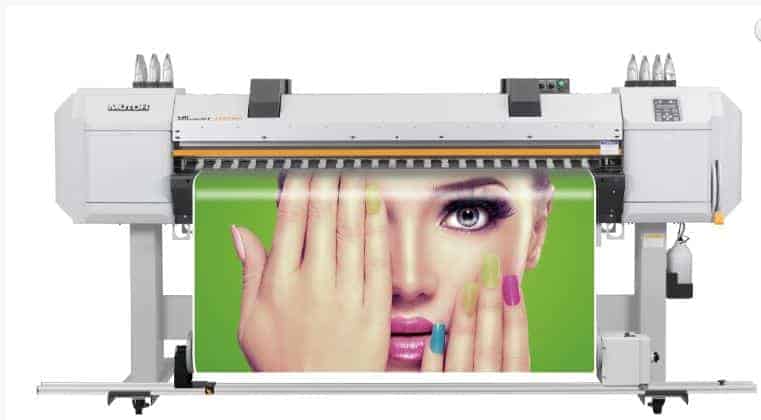

Mutoh ValueJet VJ-1627MH (64 inch) Multi Purpose Hybrid Large Format Printer

The Mutoh ValueJet VJ-1626UH LED UV Printer is a 1625mm/64 inch single head, four colour plus white and varnish print and cure solution for Specialty and Industrial applications. Designed for versatility, the Mutoh ValueJet VJ-1626UH LED UV Printer is the ideal tool to expand your business with the widest possibility of commercial print applications and maximise your creativity. Featuring CMYK UV inks, the VJ-1626UH can be set up with varnish and white to handle transparent or non-white substrates without losing colour power or to create special print effects and multi-layer printing for high end graphics.

The Mutoh ValueJet VJ-1626UH LED UV Printer prints on a variety of materials for a wide range of applications. Compatible with both rigid and roll media, the VJ-1626UH Printer enables maximum creativity, producing high quality graphics for short viewing distances including Trade Show Graphics, POP, Customised Interior Decoration, Small Lot Packaging Prototypes, Banners, Posters and more.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximize your opportunities. With more than 26 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

SKU: VY-1627MH Category: Large Format Discontinued Tag: No Lease

Mutoh

Description

The Mutoh ValueJet VJ-1627MH Multi Purpose Hybrid Large Format Printer is a 1625mm/64 inch single head, resin-based four colour plus white solution for Specialty and Industrial applications. Suited for sign and display print shops for the production of outdoor prints; graphics companies for a digital solution for proofing of short run production of packaging prototypes or customised labels; and for industrial printers specialised in thermo forming.

Designed for versatility, the Mutoh ValueJet VJ-1627MH Multi Purpose Hybrid Printer prints on a variety of materials for a wide range of applications. The Mutoh ValueJet VJ-1627MH Printer delivers high quality prints on the widest range of roll and rigid material. The VJ-1627MH Printer with MP-31 inks is suitable for car wrapping as well as thermo/vacuum forming and shrink applications. Featuring CMYK white MP-31 inks, the VJ-1627MH prints on transparent and coloured substrates.

Design Supply, a Mutoh Authorised Reseller, works closely with Mutoh to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Mutoh ValueJet VJ-1627MH

Mutoh Intelligent Interweave Technology

See how Mutoh printers are manufactured

KEY FEATURES

The Mutoh ValueJet VJ-1627MH Hot Air Hybrid Large Format Printer combines the latest generation variable drop piezo print head technology, high precision mechanical design, new electronics, and ease of use to deliver unrivalled print quality. Compatible with resin-based CMYK + white MP-31 inks, available in 500 ml packs, the Mutoh ValueJet VJ-1627MH Printer delivers high quality prints on the widest range of roll and rigid media, including ABS, aluminium sandwich board, cardboard, non PvC media, PE, PET, PMMA, PVC foam board, recyclable fibre based paper, uncoated polyester, Tyvek, heat sensitive substrates, and more.

The Mutoh ValueJet VJ-1627MH Hot Air Hybrid Large Format Printer delivers an extensive colour gamut and excellent image durability. The Mutoh MP-31 multi purpose inks include high opacity white ink for prints on transparent and coloured substrates. The Mutoh MP-31 inks are extremely stretchable and shrinkable, making them equally suited for high stretch applications such as car wrapping, thermo/vacuum forming, and shrink applications. Mutoh MP-31 inks preserve natural texture and look of substrates, including matte or glossy.

The Mutoh ValueJet VJ-1627MH Hot Air Hybrid Large Format Printer delivers high definition prints for close viewing distances. Mutoh proprietary print technology offers predictable and repeatable output quality fit for purpose every time in the shortest possible time, drastically reducing or eliminating horizontal banding, step mismatch banding and the visible effects of missing or misfiring nozzles.

Switching between rigid and roll setup is fast with the Mutoh ValueJet VJ-1627MH Hot Air Hybrid Large Format Printer. Mutoh’s automatic media thickness measurement and head height adjustment means constant and uncompromised print quality on any thickness/weight of roll or rigid media used with the Mutoh ValueJet VJ-1627MH Hot Air Hybrid Large Format Printer.

WHAT'S IN THE BOX

Mutoh ValueJet VJ-1627MH Hot Air Hybrid Large Format Printer and stand

Installation manual

Accessory box (10 cleaning sticks, 100 rubber gloves, 100 plastic gloves, 1 goggles, 10 flushing box sponges, 1 spirit level, 5 paper towels (lint-free cloth), waste fluid tank, waste fluid tank holder, tray, operation manual cd, notes for using dedicated ink cartridges, How to handle VJ-1627MH inkjet printer and its supplies, light shielding cover, 3 cleaning wipers, and user maintenance sheet)

Manual CD

Ink pack adapters

UK power cable

12 months on-site warranty

Options:

Media-feed Table with Media Support Bar

Mutoh Take Up System, automatic motorised take-up with tension bar 30 kg: VJ-16-TUP30U

Mutoh Motorised Torque Controlled Up System: ZMY-14800

Consumables:

MP-31 Inks CMYK + White & Cleaning: 500 ml pack

SPECIFICATIONS

Intelligent design features make the Mutoh ValueJet VJ-1627MH Printer is easy to set up and operate. The VJ-1627MH comes with an optional front and rear roller tables, making the media loading quick and easy with media alignment options. Integrated roll holders and can handle 2″ and 3″ rolls. Media load levers are positioned both at the front and the back of the VJ-1627MH for convenience. These scroller supports enable non-motorised roll-off of rolls up to a weight of 30 kg. Different motorised winding/unwinding systems are available for roll-to-roll production and conversion to and from rigid to roll mode only takes a moment.

The Mutoh ValueJet VJ-1627MH LED UV Printer is compatible with rigid and roll media, including ABS, Aluminium board, PC, PE, PET, PES, PMMA (acrylic), PP, PS, PVC, Glass, and Uncoated Tyvek. The maximum media thickness for both roll and rigid media is 15 mm. The VJ-1627MH accommodates rigid boards from 182 mm up to 1625 mm x 200 mm up to1200 mm and up to 15 mm thick and up to 15 kg. The VJ-1627MH features rubber rollers to increase the versatility when printing on rigid media. The roller pressure can be controlled manually with a simple lever, enabling smooth media feeding and higher print quality.

Ultimate flexibility is achieved with Mutoh’s ValueJet Status Monitor, (VSM) app for remote printer monitoring through a PC or a smart phone. VSM software, exclusive to Mutoh, maximizes the performance of the printer for remote printing.

Optional items for the Mutoh ValueJet VJ-1627MH include the Motorised Take-Up Systems, Media Retainer, and Media-Feed Table. For motorised roll up of roll media, the tension winder 30 system takes media rolls up to 30 kg or alternatively with a motorised roll off/take up system for rolls up to 100 kg. The Media Retainer is available to guide the set position for rigid media and pull the front edge of the media. The Media-Feed Table is for rigid media feeding and includes a media support bar.

Built to last, Mutoh ValueJets are renowned for precision engineering and meticulous production practices for years of profitable use. As you would expect from Mutoh, reliable performance is a given. For added peace of mind, Mutoh ValueJet printers feature a 12-month on-site warranty.

There is a complete range of Mutoh and third party rigid and roll media, compatible with the ValueJet VJ-1627MH available from Design Supply’s media specialists whose expertise can help you determine the best solutions for your particular printing needs.

Specification

Mutoh ValueJet J-1627MH (64inch) Hot Air Hybrid Printer

Print Technology

Drop-on-demand Micro Piezo Inkjet Technology

Print Head

Nozzle Configuration

180 nozzles x 8 lines

Drop Mass Range (pl)

4 to 21.3

Head Height

Automatic

Rigid Media Specifications

Min/Max Media Width

182mm (7.17″)/1625mm (63.97″)

Max Print Width

1615mm (63.58″)

Max Media Length

200mm (7.87″) – 1200mm (47.24″)

Max Media Thickness

16mm

Max Media Weight

15kg

Media Drying System

Full width 64″ air knife. Typical media surface temperature 40°C-50°C

Roll Media Specifications

Mix/Max Media Width

182mm (7.17″)/1625mm (63.97″)

Max Print Width

1615mm (63.58″)

Max Media Thickness

16mm

Media Measurements

ø150mm/2″ and 3″/30kg

Media Drying System

Full width 64″ air knife. Typical media surface temperature 40°C-50°C

Ink Specifications

Ink Type

MP31 Multi-Purpose inks

Ink Volume/Colours

CMYK+ White & cleaning/500ml pack (requires adapter)

Ink Setup

CCMMYK+Cleaning/CMYK+White+Cleaning

Ink Consumption

UV Durability CMYK without lamination

6.6ml/m² (based on 720dpi, CMYK setup)

Up to 2 years outdoor

Performance (m²/h)
Print Mode	4-Colour Setup	5-Colour Setup
	CMYK	CMYK only	White only	White+CMYK
720 x 1440 High Quallity	3	1.42	3	0.4
720 x 1440 Quality	6.1	2.8	6.1	0.8
720 x 1080 High Qualilty	4.4	2.0	4.4	0.6
720 x 1080 Quality	8.1	3.6	8.0	1.2
720 x 720 High Quality	6.5	3.0	6.5	1.1
720 x 720 Quality 360 x 1080 Quality	12.1 16.0	5.6 7.8	12.0 16.0	2.09 2.9

Power Consumption

During Printing

2500W or less

Standby

65W or less

Warm Up

2440W or less (2 x sockets)

Power Supply

AC 100-120 V/AC 200-240 – 60/50 Hz

Working Environment

Temperature

20°C – 28°C with delta max 2°C/h

Humidity

40% – 60% (no condensation) with delta RH max 5% RH/h

Dimensions

Width x Depth x Height mm

2698 x 818 x 1302 mm (roll)

Width x Depth x Height mm

2698 x 2730 x 1302 mm (rigid)

Weight Kg

200.5 kg (printer and stand)
43 kg (weight/table)
18 kg (take-up unit)

DATA SHEETS

Mutoh ValueJet VJ-1627MH Data Sheet

Mutoh Print Inspiration Brochure

Mutoh Edition SAi FlexiPrint SE12 RIP Software Data Sheet

Mutoh Edition Onyx12 RIP Center ValuePlus RIP Software Data Sheet

Mutoh SpectroVue VM-10 Data Sheet

Mutoh ColorVerify Data Sheet

Mutoh ValueCut Series Cutting Plotters: (600, 1300, 1800) Data Sheet

Mutoh ValueCut 600, 1300 and 1800 Specifications

Mutoh ValueJet and ValueCut Series Brochure (June 2013)

Mutoh Motorised Torque Controlled Take Up Systems Data Sheet

Mutoh Optional Take Up Systems for ValueJet Series Data Sheet

MANUFACTURER INFORMATION

Mutoh has been at the forefront of the wide format industry for more than 20 years. As an innovative developer and manufacturer of wide-format printers and cutters, Mutoh incorporates pioneering technology to bring you the best equipment for your application. Manufactured in Japan, Mutoh ValueJet printers feature best-in-class inkjet head technology, latest generation electronics and high quality inks.

Mutoh’s new wide piezo print head and new generation electronics offers a unique blend of high speed and high quality. The wide piezo print head features 8-channel drop-on-demand inkjet technology. Each 1440 nozzle head includes four colour sections (C, M, Y, K) each divided in two nozzle rows with 180 nozzles per colour. All four colour sections are in one head, eliminating the need for head to head calibration. The integrated print heads are capable of producing ink drops ranging from 3.8 picoliters to 28 picoliters, resulting in incredible accuracy, sharpness, and speed. Increased accuracy and consistency of dot size and dot release during printing improves the image, in addition to increased dot gain control, allowing for more latitude in profile settings. New generation electronics include higher carriage speeds and ink firing frequencies and adapted weaving algorithms give an impressive increase in productions speed as well as optimised ink spread and improved drying.

Mutoh’s award-winning Intelligent Interweaving print technology drastically reduces or totally eliminates the typical difficulties inherent to conventional digital inkjet printing, including defects such as horizontal banding, ink mottle, bleed and the visible effects of missing or misfiring nozzles. Ink is laid down in waves, as opposed to straight lines used on most wide format printers. The biggest benefit of this proprietary Mutoh print technology is that it offers predictable and repeatable output quality, bringing an unprecedented level of user comfort to the printer operator.

DropMaster technology is a revolutionary print automation technique which eliminates the need for media dependent head adjustments. Specifically designed for Mutoh’s dual head ValueJet models, DropMaster automatically calculates and adjusts the uni/bi-directional fire timings by analysing the media thickness and drop-throw distance between print head and media surface.
