The KIP 700 C Series are 36 inch/A0 wide format comprehensive solutions for a range of wide format printing tasks that require the highest levels of quality and performance. The system’s workflow provides powerful print control for any production environment from a range of print submission applications, cloud printing, scan & copy, variable data printing and fully integrated stacking and folding. The KIP 700 Series are ideal for low, mid volume and high productivity.

Categories: A0 Large Format CAD Printers, A0 Multi Function Printers, All CAD PRINTERS, All Large Format Printers, KIP Multi Function Large Format Printers, Multi-Format Large Format Printers. Print, Scan and Copy., Scan or Print Tag: No Lease

KIP Toner Large Format Printers

Description

The KIP 700C Series are 36-inch/914mm/A0 wide format solutions available in 12 configurations. The low volume models include the KIP 730 printer and KIP 740 multi-function print, copy and scan system. The mid volume models include the KIP 750 and KIP 770 printers and the KIP 760, KIP 780 and KIP 790 multi-function print copy and scan systems. The high demand models include the KIP 755 and KIP 775 printers and the KIP 765, KIP 785 and KIP 795 multi-function print, copy and scan solutions.

Design Supply works closely with KIP to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 32 years of experience in the large format printer market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

KIP 700 Series

KEY FEATURES

The KIP 700 C Series are designed for smart workgroup technical, graphic and office document users who require high demand output, precise imaging and bold expressive colour fidelity. The KIP 700 C Series are a comprehensive wide format solution for a range of printing tasks spanning from architectural, engineering, and construction documents to maps, posters, signs and photo enlargements without sacrificing quality or performance.

The KIP 700 C Series feature state-of-the-art Toner Technology, Contact Control Technology and Consistent Speed Technology to deliver the best image quality, print speed, and durablity regardless of the print type or image coverage.

The KIP 700 C Series features standard top stacking. Optional rear stacking and the KIP Stack and Fold option is available for mid and high volume models.

The KIP 700 C Series include the KIP System K Software, included with all KIP Systems. Print management solutions for the KIP 700 C Series are second to none. Whether print management, cost control, touchscreen tablet navigation, or workflow automation, the KIP K System Software is easy to use and delivers single touch efficiency. The KIP Systems K Software includes KIP ImagePro, KIP PrintPro.Net, KIP Windows Driver, optional KIP Accounting and Cost Centre, and KIP Security.

The KIP 700 C Series features a 15.6” smart tablet-like touchscreen with a full range of connectivity and intuitive navigation that keeps you in sync with how you want to work. Touchscreen convenience offers advanced network cloud access, set printing and system management without a PC workstation.

KIP 700 C Series: Print Systems

The low volume KIP 730 print system features a single footprint space saving design. The KIP 730 is designed for low demand project requirements, with outstanding performance and reliability. The KIP 730 Print system includes two media rolls.

The mid volume KIP 750 print system is designed for mid volume project requirements, with outstanding performance and reliability. Optional rear stacking is available to increase productivity. The KIP 750 Print system includes two media rolls.

The mid volume KIP 770 print system features four media rolls and the optional KIP Stack and Fold option.

The high demand KIP 755 print system features a single footprint space saving design. The KIP 755 is designed for high demand project requirements, with outstanding performance and reliability. An optional rear stacking is available for added convenience. The KIP 755 Print system includes two media rolls.

The KIP 775 print system features four media rolls. An optional stack and fold design is available for added convenience.

KIP 700 C Series: Multi-Function Scan and Print Systems

The low volume KIP 740 multi-function solution is is ideal for environments that require convenient multi-function productivity with a single footprint space-saving design. The KIP 740 scan and print system includes an integrated high quality CIS Scanner and two media rolls. All system features and functions are at your fingertips using the intuitive touchscreen navigation that automates copy, scan and print functions for single touch productivity.

The mid volume KIP 760 multi-function solution is ideal for environments that require convenient multi-function productivity with a single footprint space-saving design. The KIP 760 scan and print system includes an integrated high quality CIS Scanner and two media rolls. All system features and functions are at your fingertips using the intuitive touchscreen navigation that automates copy, scan and print functions for single touch productivity. The KIP 760 has a rear image stacking option for busy environments to benefit from greater productivity and workplace efficiency without interruption.

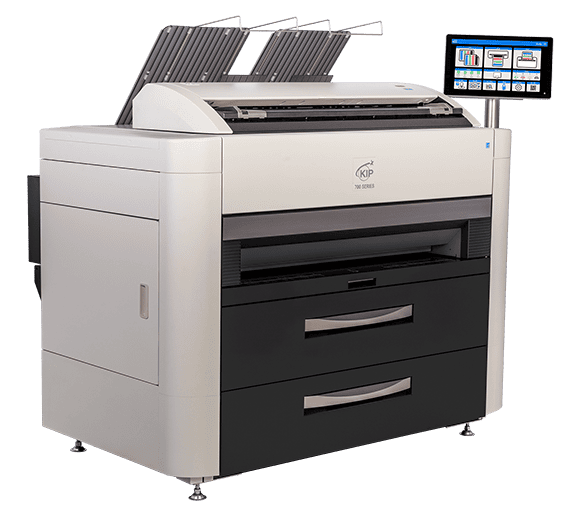

The mid volume KIP 780 multi-function scan and print solution features an integrated high quality CIS Scanner and 4 media rolls with a single footprint and an optional stack and fold accessory.

The high demand KIP 765 multi-function scan and print solution features an integrated high quality CIS Scanner, 2 media rolls with a single footprint and an optional rear stack accessory.

The high demand KIP 785 multi-function scan and print solution features an integrated high quality CIS Scanner, 4 media rolls with a single footprint and an optional stack and fold accessory.

KIP 700 C Series: Production Systems

The mid volume KIP 790 multi-function production solution delivers unmatched multi-function copy, scan and print performance for mid volume enterprise workflow. The integrated dual footprint configuration multitasks scan and print production, saving valuable project time. The KIP 790 multi-function system includes the integrated KIP 2300 CCD External Scanner. The KIP 790 features 4 media rolls and an optional stack and fold accessory.

The high demand KIP 795 multi-function production solution delivers unmatched multi-function copy, scan and print performance for high demand enterprise workflow. The integrated dual footprint configuration multitasks scan and print production, saving valuable project time. . The KIP 795 multi-function system includes the integrated KIP 2300 CCD External Scanner. The KIP 795 features 4 media rolls and an optional stack and fold accessory.

SPECIFICATIONS

The KIP 700 C Series automatically prints colour and B&W mixed print sets. Delivering 2400 x 600 dpi resolution, the KIP 700 Series prints consistently high quality with fast print production. KIP 700 C Series deliver maximum productivity for CAD/GIS printing with the low volume KIP 730 and KIP 740 printing 6 colour or B&W prints per minute, the mid volume KIP 750, KIP 760, KIP 770, KIP 780 and KIP 790 printing 8 B&W prints per minute, and 6 colour prints per minute. The high demand KIP 755, KIP 765, KIP 775, KIP 785 and KIP 795 print 12 B&W prints per minute, and 10 colour prints per minute. Single pass black delivers a 25% increase in productivity. An exclusive single belt drive system performs automatic calibration for precise imaging and bold, expressive color output.

KIP LED toner technology produce unrivaled image durability and outstanding archival quality. KIP CCT pressure fuses toner into the media producing prints that hold up to heat, friction, scratching and repeated handling that can quickly destroy image quality. Each CMYK cartridge contains 1000 g of toner for a total capacity of 4000 g, allowing longer uninterrupted colour and black and white print runs for continuous system productivity. The KIP 700 C Series creates waterproof prints, enabling outdoor viewing and easy handling of drawings. Prints are waterproof, UV resistant and highlighter safe with outstanding archival quality.

The KIP 700 C Series features a 15.6” smart tablet-like touchscreen with a full range of connectivity and intuitive navigation that keeps you in sync with how you want to work. Real Time Preview, AOI (area of interest) Image Editing, and Auto De-skew ensures perfectly aligned scans and copies every time.

The KIP 700 C Series print technology eliminates roll switching delays for increased productivity. Two or four media rolls and a sheet feeder deliver mixed print sizes at full production. Extended print lengths are supported on a variety of media types from either of its 2 or 4 integrated roll decks for maximum productivity and operator efficiency. Media load assist is an ergonomic roll cap system that simplifies the process of loading the 150 m rolls.

The KIP 700 C Series accepts 150 m media rolls x 2 (KIP 73o, 740, 750, 755, 760, 765) or x 4 (KIP 770, 775, 780, 785, 790, 795) 3-inch core plain paper media rolls with a thickness range of 65 to 160 gsm. The output size width is 297- 914 mm/11-36 inch and the maximum print length for roll paper is 6 meters, extendable to 25 m based on media type.

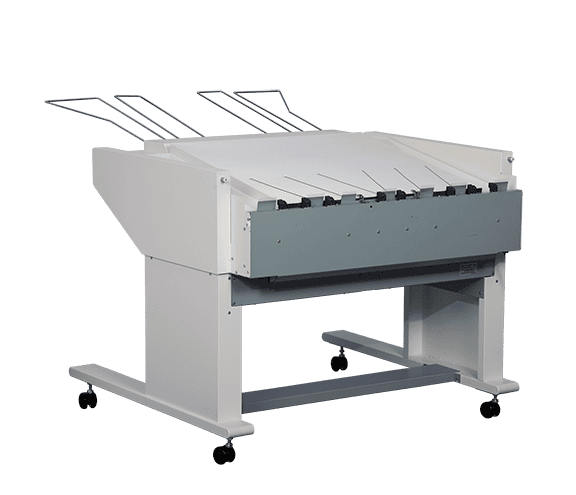

The standard top stacking for the KIP 700 C Series stacks up to 100 documents based on size and media type (default for 20#/75 gsm paper). The Optional Rear Stacking (KIP 750, 760, 755, 765) stacks up to 700 mixed size pages (based on media type and printer model). The optional Stack and Fold (KIP 77o, 780, 790, 755, 785, 795)

KIP System K Software provides seamless control of black and white and colour files. It provides a single software platform with cloud solutions, print system management, advanced security, automated workflow management and continuous enhancement of features and functions. KIP Security features include image overwrite, data encryption, user authentication, KIP Card Reader Systems, removable drive kit and KIP Controller and Microsoft OS.

KIP Multi-Touch Solutions which enables copy and scan (KIP 740, 760, 765, 780, 785, 790, 795) to local, USB, LAN, and Cloud destinations, and print from local, USB, LAN, and Cloud sources. KIP SmartPrint supports printing from Windows, IOS, Android, Linux and Mac systems from a computer, laptop, smart phone or tablet.

KIP ImagePro is a driver-less PC App printing , enables fast and easy print control and integrated with all KIP black and white and colour systems. KIP ImagePro provides job creation, image capture and reproduction for all print, scan, and copy environments. Instantly see printer or scanner status, zoom in or out on any image for intense detail or accurately view settings prior to printing. Image Clean-Up easily cleans up the background and Automatic Deskew makes scanning easy and effortless with the KIP 700 C Multi-Function System. Boost black lines during the scanning or printing is also available. Superview with Area of Interest enables proofing before printing, including sizing or crop tools to quickly select only what you want. KIP ImagePro includes professional colour managment tools for colour management and quick spot colour changes. Step and Repeat, Image Nesting reduces media waste, panel by size or use the convenient automatic paneling feature to create wall size banners and poster fast. Reposition Tools and Enable Important Features enables column logic and the ability to edit large job sets with cut and paste. KIP job information shows productivity at a glance with a summary of pages, colour and black and white image count, estimated print time, identify and correct issues prior to printing. Renaming files is simple and efficient. Printer and scanner information is on the dashboard for instant status information.

The KIP Windows driver enables printing directly from Windows and is Microsoft WHQL Certified. It works with Windows 10/11, 32 and 64 bit operation systems. The KIP Windows driver can be used with a variety of Windows based programs including Adobe, Office and CAD Applications and is a single source installation. It includes workflow automation templates and enables easy viewing and managing of Job Queue and Job History with real-time printer status.

KIP PrintPro.net is a driver-less browser printing submission tool. No installation or application is required. KIP PrintPro.net supports Windows, Unix, and MAC OS browsers for full control over printing parameters. KIP PrintPro.net enables remote printer administration and queue management.

The optional KIP Accounting and Cost Center tracks projects and printing costs. KIP Accounting allocates print and copy volumes to departments and projects. Easily print or email visually attractive reports for copy, print and scan production directly from the application. Enhance print system access and security, as well as track copy/scan/printing. Control user features including queu management, plus many more. Supports LDAP import of user information.

There is a complete range of 3-inch core plain paper media compatible with the KIP 700 C Series, available from Design Supply’s media specialists. Design Supply’s expertise can help you determine the best solutions for your particular printing needs and budget.

The embedded scanner included with the KIP 740, 760, 765 and 785 is a 600 dpi CIS Scanner and the KIP 790 and 795 uses a KIP 2300 CCD external scanner. All multi-function systems scan original size widths of 210-914mm/11 – 36 inch and original thickness of .05 – 1.6 mm. Scan formats supported include PDF, PDF-A, Multipage PDF, TIFF, Multipage TIFF, and JPEG. Scan destinations include Local USB (removable media), Mailboxes (local), SMB, FTP, and Cloud.

As you would expect from KIP, reliable performance is a given. For added peace of mind, KIP 700 C Series provide installation and maintenance programmes. For further information contact Design Supply.

AT A GLANCE

KIP 700 C Series Features:

• Colour and Black & White Print Production
• New 15.6″ smart tablet-like touchscreen
• KIP Contact Control Technology
•Compact by design
• Industry Leading Software: KIP System K Print Management Suite
• Single Pass Black for B&W printing
• Full CMYK for Colour printing
• Fast media installation with simple end cap design
• Auto roll switching
• Fast print production
• Consistent print quality
• Best in Class Technology
• True Touch Productivity

KIP 700 C Series Print Systems (KIP 730, 750, 770, 755, 775) Features:

2 Roll (KIP 730, 750, 755) or 4 Roll (KIP 770,775)
Standard Front Stacking
Optional Rear Stacking (KIP 750, 755, 770, 775) or KIPFold (KIP 770, 775)
KIP System K Print Management Suite (KIP ImagePro, KIP PrintPro.net, KIP Windows Driver)
15.6″ KIP Touchscreen
Single Footprint

KIP 700 C SeriesMultiFunction Systems (KIP 740, 760, 780, 765, 785) Features:

Multi-Function System with Integrated 600 dpi CIS Scanner
2 Roll (KIP 740, 760, 765) or 4 roll (KIP 780, 785)
Standard Front Stacking
Optional Rear Stacking (KIP 760, 765, 780, 785) or KIPFold (780, 785)
KIP System K Print Management Suite (KIP ImagePro, KIP PrintPro.net, KIP Windows Driver)
15.6″ KIP Touchscreen
Single Footprint

KIP 700 C SeriesMultiFunction Production Systems (KIP 790, 795) Features:

Multi-Function System with Integrated 600 dpi CCD Scanner
4 roll
Standard Front Stacking
Optional Rear Stacking or KIPFold
KIP System K Print Management Suite (KIP ImagePro, KIP PrintPro.net, KIP Windows Driver)
15.6″ KIP Touchscreen
Dual Footprint

WHAT'S IN THE BOX

KIP 700 C Series Print Systems

KIP 730 2-roll MFP Colour Print System: SYS730C

KIP 750 2-roll Print System: SYS750C

KIP 770 4-roll Print System: SYS770C

KIP 755 2-roll Print System: SYS755C

KIP 775 4-roll Print System: SYS775C

KIP 700 C Series Multifunction Systems

KIP 740 2-roll MFP System: SYS740C

KIP 760 2-roll MFP System: SYS760C

KIP 780 4-roll MFP System: SYS780C

KIP 765 2-roll MFP System: SYS765C

KIP 785 2-roll MFP System: SYS785C

KIP 700 C Series MFP Production Systems

KIP 790 4-roll MFP System: SYS790C

KIP 795 4-roll MFP System: SYS795C

Included:

Start-Up Toner 1 x 500 g cartridges each C,M,Y,K

Waste Toner Receptacles

15.6″ KIP Touchscreen: 15.6″ integrated true smart tablet function touchscreen offers unmatched productivity with intuitive features to brilliantly automate Print, Copy and Scan workflow.

KIP System K Software: KIP ImagePro, KIP PrintPro.net, KIP Windows Driver

Integrated CIS Scanner (KIP 740, 760, 765, 780, 785)

External CCD KIP 2300 Scanner (KIP 790, 795)

Supplies:

Toner 2 x 500 g cartridges each C,M,Y,K: Cyan: Z480970021, Magenta: Z480970031, Yellow: Z480970041, Black: Z480970011

Waste Toner Receptacles (4 units): Z358080350

Software Options:

KIP Accounting & Cost Center: K1AKC00070

PDF Format Printing Code: DIGPDF-700K

Includes support for Postscript levels 1, 2 & 3, PDF 1.7, sets printing, collation, multi page support, image sizing & scaling, recall, viewing, file conversion & unlimited site license.

Hardware Options:

Rear Stacker : OS (KIP 750, 760, 770, 780,790, 755, 765,775, 785, 795)

Stack and Fold: OF (KIP 770, 780, 790, 775, 785, 795)

Installation & Maintenance:

Installation includes system hardware with standard print tray, installation of drivers and KIP software onto three workstations. Contact us for further information and pricing.

Monthly maintenance plan are available. Contact us for further information and pricing.

DATA SHEETS

KIP 700C Series Brochure

MANUFACTURER INFORMATION

KIP is a leading global supplier of digital printing and scanning solutions for colour and monochrome wide format documents. KIP offers an extensive product range that meets the ever-increasing demands for fast, high quality, cost effective reproduction. KIP advanced product technology leads the market in performance, reliability and value with an exception low cost of operation.

KIP is committed to product design that promotes environmental health and sustainability. KIP’s goal is to improve the customer experience by integrating environmental considerations into its business strategy, resulting in superior products. Customers increasingly value environmental aspects of products, such as energy efficiency and emissions reduction. KIP differentiates its products be integrating such features to reduce total cost of ownership and deliver an improved user experience.

KIP wide format scan/print/copy solutions are revolutionising wide format colour printing and establishing new standards for wide format reliability. KIP solutions use a number of advanced proprietary technologies to achieve fine lines, small text and highly detailed graphics produced with incredible accuracy and sharpness.

KIP state-of-the-art technology includes Contact Control Technology (CCT), ensuring the highest level of accuracy and precision quality in the production of every colour or black and white image. Contact Control Technology is the ability to control the placement of the toner particles through direct contact at every stage of image development resulting in 2400 x 600 dots per inch (dpi) and outstanding print performance.
