Graphtec CE7000-40 is a desktop 400mm wide (15 inch), roll fed cutting plotter for making signs, decals, and labels, as well as heat transfer graphics for garments and rhinestone patterns for apparel. Featuring fast cutting speeds and compatibility with a variety of both thin and thicker media, the Graphtec CE7000-40 is easy to use, with an optical print and cut detection system and the ability to cut multiple pre-printed graphics without user input. The Graphtec CE7000 Series cutting plotters include Cutting Master 4, a plug-in software for Adobe Illustrator and CorelDRAW, and Graphtec Pro Studio software, an easy to use software for creating original designs.

SKU: CE7000-40 Categories: All Cutting Plotters, Graphtec, Large Format Cutting Plotter, Vinyl Cutters Tag: No Lease

Graphtec

Description

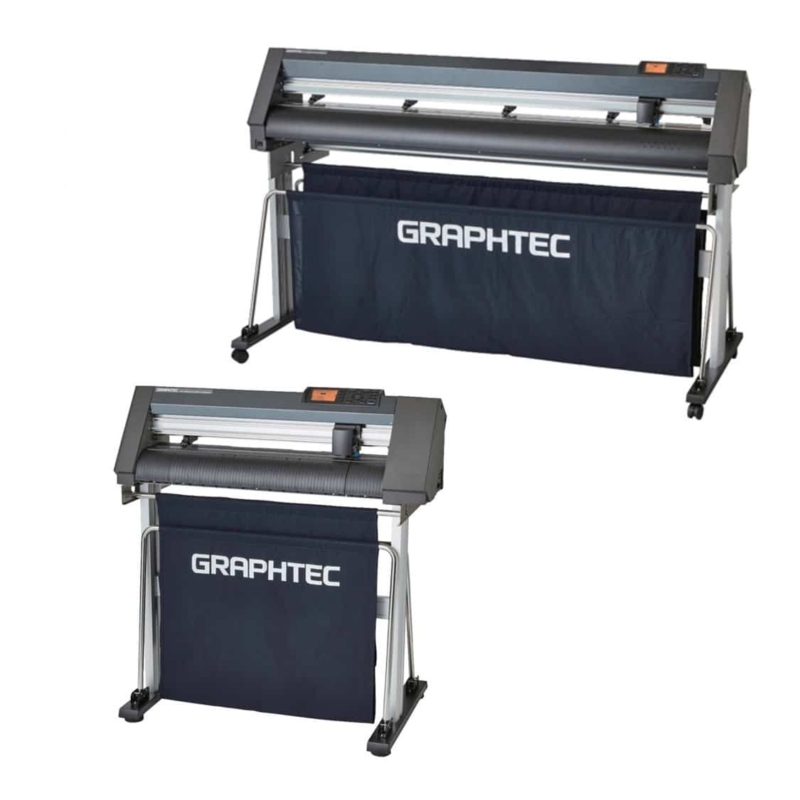

The Graphtec CE7000 Series Cutting Plotters are entry level, roll fed cutters ideal for a wide variety of cutting applications including making signs, decals, and labels, as well as heat transfer graphics for garments and rhinestone patterns for apparel. Available in 3 formats; desktop, standalone and enhanced and 4 cutting widths; 400mm, 600mm, 1300mm and 1600mm (19, 28, 54 and 64 inch), the Graphtec CE7000 Series are feature-rich, cost-effective cutting plotters for the print shop floor that deliver enhanced performance and specification at an unrivaled price point.

Graphtec CE7000-40 is a desktop 400mm wide (15 inch), roll fed cutting plotter featuring fast cutting speeds and compatibility with a variety of both thin and thicker media. Ease of use, an optical print and cut detection system,and the ability to cut multiple pre-printed graphics without user input make the Graphtec CE7000 Series ready for perfect teamwork with any printer. The Graphtec CE7000 Series cutting plotters include Cutting Master 4, a plug-in software for Adobe Illustrator and CorelDRAW, and Graphtec Pro Studio software, an easy to use software for creating original designs.

Design Supply, a Graphtec Authorised Reseller, works closely with Graphtec to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 28 years of experience in the large format market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

Graphtec CE-7000 Series (CE7000-40, CE7000-60 and CE7000-130)

KEY FEATURES

The new CE7000-40 Cutting Plotter is an easy to use, versatile, high quality, entry level desktop Cutting Plotter. Ideal for users based in a smaller work space, the Graphtec CE7000-40 Cutting Plotter automatically cuts a wide variety of media up to 400mm/15 inches wide.

Easy to use for print and cut applications, the Graphtec CE7000-40 Cutting Plotter features a new and improved Advanced Registration Mark Sensing (ARMS 8.0) system. ARMS is a registration mark sensor for print and cut jobs , which reads registration marks and accurately contour cuts designs that are output from any printer. A new datalink barcode system, generates barcodes as part of the design, which enables hands free operation. Designs are then read by the CE7000-40, which automatically loads cutting information and processes print and cut jobs. A second USB port enables jobs to be run from a USB stick, without a PC. The LED keypad on the front of the Cutting Plotter has 8 recallable tool conditions, ideal for storing cut settings for the most commonly used media, and saving time when changing the media type.

The Graphtec CE7000-40 is versatile, ideal for a wide variety of cutting applications including thinner adhesive back high performance vinyl, delicate window tint films to thicker media including heat transfer graphics for garments and rhinestone patterns for apparel and point of purchase and other applications. Perforated cutting is available for creating pop out decals with the backing still attached for easy distribution. An optional Carrier Sheet Table is available for cardstock and other rigid materials to be contour cut for Point of Purchase and other applications.

The Graphtec CE7000-40 Cutting Plotter delivers high quality results every time and features a rugged “workhorse” design. The ARMS system ensures accurate cutting on registration lines. When cutting thicker materials or intricate designs on thinner medias, the CE7000-40 features a Tangential Emulation Mode ensures clean and accurate corners . Improved tracking features stock media rollers with stoppers contribute to keeping the roll of media straight.

SPECIFICATIONS

The Graphtec CE7000-40 Cutting Plotter has a maximum cutting speed of 600mm per second in all directions and a maximum acceleration of 21.2m/s² at a 45° direction. The Graphtec CE7000-40 Cutting Plotter supports various cutting patterns such as perforation cut, with a maximum cutting force of 450g. The CE7000-40 has a maximum cutting area of 375mm x 50m and a cutting area of guaranteed accuracy of 355mm x 2m. The minimum mountable media width is 50mm and the maximum is 484mm/19inch. The mountable media mass capacity is 5kg. There are two push rollers. The minimum character size is approximately 5mm and the mechanical resolution is 0.005mm. The blade is made of supersteel, and the media maximum thickness is up to 0.25mm. The CE7000-40 has 2MB of buffer memory and is compatible with Windows 10/8.1/7 and Mac OS X 10.6∼10.11.

The Graphtec CE7000 Series Cutting Plotters feature ARMS 8.0 (Advanced Registration Mark Sensing), an Optical Eye For Continuous Cut Capabilities delivering precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Improvements to the ARMS sensor algorithm means coloured marks can be read, improving compatibility with a wide variety of media types including holographic paper and reflective sheets. An expanded cutting area includes objects outside of the area enclosed by the registration marks, reducing media waste and improving production efficiency.

The Graphtec CE7000 Series Cutting Plotters feature a Data Link function which is a barcode data management for continuous cutting. By reading the Graphtec original Barcode, the Graphtec CE7000-40 automatically detects its linked data from PC or USB flash memory. The USB memory format supports FAT32.

The Graphtec CE7000 Series Cutting Plotters include Cutting Master 4 software, a Graphtec plug-in software for Adobe Illustrator and CorelDRAW. Cutting Master 4 is easy to use, and enables the best performance from the CE7000 Series. It sends cutting data to the CE7000 Series Cutting Plotter and includes a variety of functions including; preview, registration mark creation, tool conditions, cut job settings and more. Trim and crop marks for Adobe Illustrator are available with Cutting Master 4.

The Graphtec CE7000 Series Cutting Plotters include Graphtec Pro Studio (Windows) software, an easy to use graphic design software for creating original designs. Graphtec Studio Pro has a variety of enhanced creating and editing functions and configures the cutting conditions and other settings on the CE7000 Cutting Plotter. Create designs using auto-shapes, various line types and shading. Edit text by using features such as rotate, mirror, fit to shape and more. Auto-trace is also available using various image formats including bmp, tiff, jpeg, gif and more . EPS, DFX, other raster format files, Ai, CMX and PDF file formats are supported and graphics created with other popular design software can be imported into Graphtec Pro Studio. Graphtec Pro Studio can layer, output by colour, and insert a weeding line. For Macintosh compatibility, Graphtec Studio software is available.

Optional accessories for the Graphtec CE7000-40 include a Carrier Sheet Table, Graphtec Pro Studio Plus Software, and specialist cutting blades. The Carrier Sheet Table attaches to the front and back of the cutting plotter to support a carrier sheet. Graphtec Pro Studio Plus Software is an advanced graphic design software for supporting Rhinestone templates and Auto-Nesting. Additional functions include transformation of characters and graphics, automatic sequence number insertion, bar-code creation, templates for rhinestone creation, nesting, directional change of cutting lines, changing cutting order and more. For convenience, both the Rhinestone and Auto-Nesting are available as individual limited edition versions. A special car film blade is available, as well as a paper/cardboard blade.

Built to last, Graphtec Cutting Plotters are renowned for precision engineering and stringent production practices for years of profitable use. As you would expect from Graphtec, reliable performance is a given. For added peace of mind, Graphtec CE7000 Series Cutting Plotters feature a 2 year warranty.

There is a complete range of Graphtec Cutting Plotters, large format printers, and other hardware and consumables available from Design Supply’s large format specialists whose expertise can help you determine the best solutions for your particular cutting needs.

WHAT'S IN THE BOX

Graphtec CE7000-40 Desktop Cutting Plotter, 400mm wide: CE7000-40

Roll Feeder

Carrier Sheet:A3 size

Roll Media Tray

Water-based Fibre-tipped Pen

Fibre-tipped Pen Holder

Loupe

Cutting Blade

Cutting Blade Holder

USB Cable (2.9 m long)

Power Cord

DVD-ROM with user manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4

Setup Manual, Cutter Blade Manual and Safety Manual

2 year warranty

Options:

Carrier Sheet Table for 400mm & 600mm: OPH-A45

Enhanced Graphtec Pro Studio Plus Software(1 license): OPS682-PLS

Enhanced Graphtec Pro Studio Plus for Rhinestone Software(1 license): OPS682-RSF

Enhanced Graphtec Pro Studio Plus Software for Auto Nesting (1 license): OPS682-ANF

Consumables:

Graphtec 0.9mm Supersteel Blade 45°angle : CB09UB

Graphtec 0.9mm Supersteel Blades 45°angle(5): CB09UB-5

Graphtec 0.9mm Supersteel Blades for Car-film, 60°angle(5): CB09UB-K60-5

Graphtec Blade Holder for CB09U Series Blade: PHP33-CB09N-HS

Graphtec 1.5mm Blade for paper/cardboard, 45°angle(5): CB15U-5

Graphtec 1.5mm Blade for paper/cardboard, 30°angle(5): CB15U-K30-5

Graphtec Blade Holder for CB15U Series Blade: PHP33-CB15N-HS

Replacement Cutting Matt, 400mm wide (2 sets): PM-CR-009

Loupe: PM-CT-001

Fiber-tip pen holder: PHP31-FIBER

Black Water-based fiber-tip pen(10 pens): KF700-BK

Red Water-based fiber-tip pen(10 pens): KF700-RD

Ballpoint pen holder for KB700 pen: PHP34-BALL

Black Oil-based ballpoint pen(10): KB700-BK

Carrier Sheet A3 (2): CRO9300-A3

DATA SHEETS

Graphtec CE7000 Series Cutting Plotters Brochure

MANUFACTURER INFORMATION

Graphtec Corporation, formerly Watanabe Instruments, manufactures input and output devices in Japan, with subsidiaries in the USA, Europe and Australia. Founded in 1949 the company released its first plotter in 1961.

The Graphtec range of market leading plotters are the accumulation of 70 years of pioneering technological development. From desktop-sized plotters through to industrial grade flat bed cutting tables, Graphtec have professional solutions in a vast array of industies where precision is key, including Aerospace, Sign Makers, Apparel Designers and Architects.
