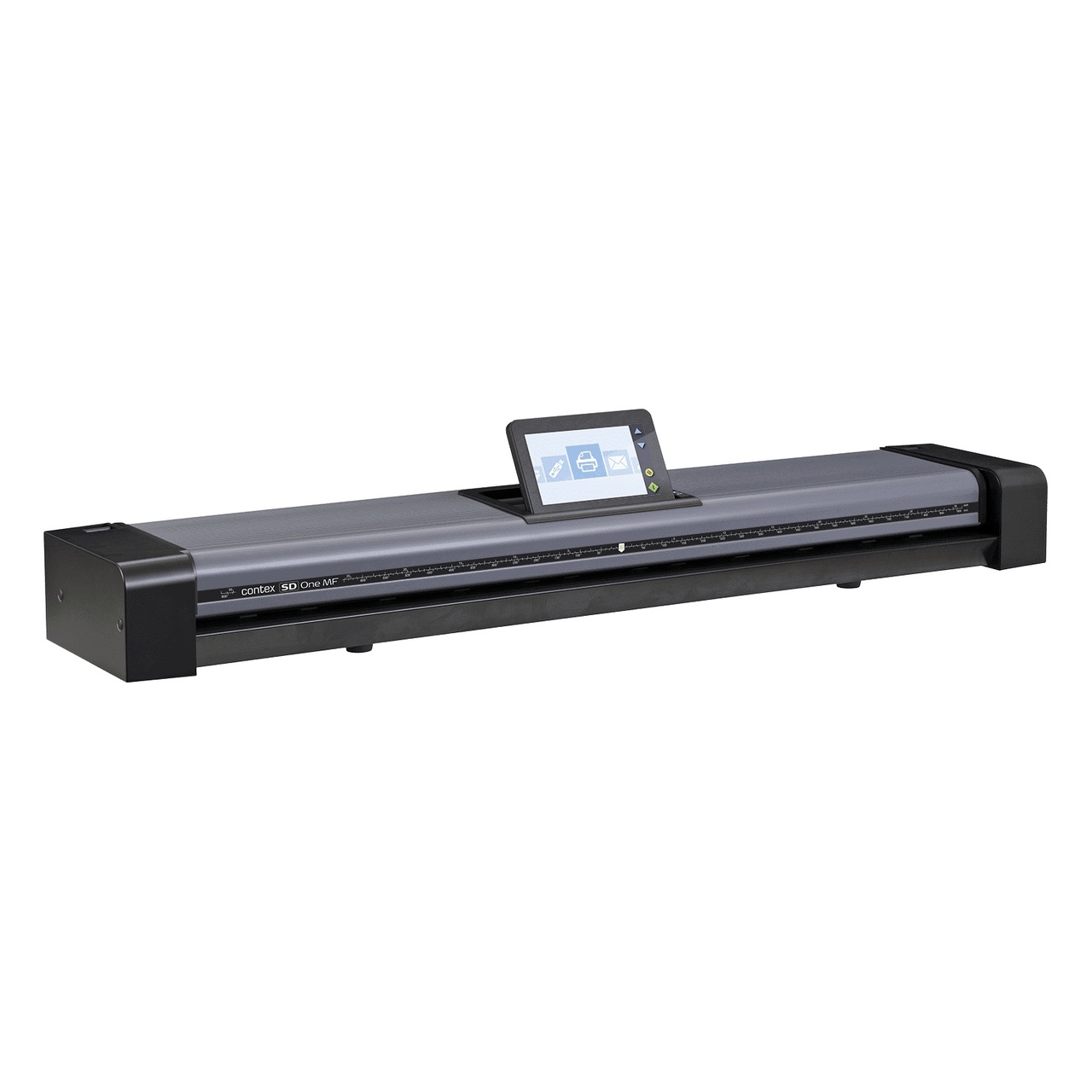

Contex SD One MF 44 Large Format Scanner

The new Contex SD One MF Scanners are a new concept in multifunction solutions, designed to optimise processes in all parts of the construction lifecycle management. WiFi enabled and with an integrated tablet screen to for intuitive touch screen operation, the SD One MF Scanners are ideal for the AEC, CAD, and GIS markets. Available in three sizes: 24-inch/A1, 36-inch/A0, and 44-inch/A0 , Contex SD One MF Scanners are an intelligent collaboration tool for teams that wants to save time, costs, and space when scanning oversized engineering and construction drawings in-house.

Description

The new Contex SD One MF Scanners are a new concept in multifunction solutions, designed to optimise processes in all parts of the construction lifecycle management. WiFi enabled and with an integrated tablet screen to for intuitive touch screen operation, the SD One MF Scanners are ideal for the AEC, CAD, and GIS markets. Available in three sizes: 24-inch/A1, 36-inch/A0, and 44-inch/A0 , Contex SD One MF Scanners are an intelligent collaboration tool for teams that wants to save time, costs, and space when scanning oversized engineering and construction drawings in-house.

Contex SD One MF Scanners scan all wide format documents and save them according to each user’s unique personal profile with preferences stored, whether emailing or saving to a preferred folder in a single step. With the on-board touchscreen tablet, mark-ups and sharing is possible, without printing files. When printing is required, the SD One MF Scanners fully integrate with all major printer brands, offering flexibility to link this powerful scanner with any choice of printer.

Design Supply, a Contex Accredited Partner, works closely with Contex to provide the best solutions available to get the job done for your business and maximise your opportunities. With more than 30 years of experience in the large format market, Design Supply offers expertise and knowledge in tailoring the exact solution for your specific application.

VIDEOS

SD One MF Scan direct to your personal cloud

SD One MF Scanner Markup and copy

SD One MF Scan to PC or Network

SD One MF Scan directly to USB flash drive

KEY FEATURES

The Contex SD One MF 44 Scanner is intelligently designed to integrate with your business. Ideal for multiple users, entire teams can set up individual user profiles to scan direct to project folders, browse user profiles on the SD One MF 44 Scanner, and scan direct to pre-set destinations unique to each user. SD One MF 44 Scanner remembers preferences and scan direct to selected project folders or mobile platforms through integrated Cloud support. SD One MF Scanners are the only Wi-Fi enabled large format scanners, making them easy to set up and easy to use.

Lightweight, the SD One MF 44 Scanner can be placed on any desktop, flat surface, or on top of a large format printer. The SD One MF 44 Scanner requires a login pin each time, keeping scanning secure. Integrated print management software tracks the cost of every scan or pint, perfect for situations requiring costs to be allocated.

The Contex SD One MF 44 Scanner is intelligently versatile, whether in the design, as-builds, or maintenance of a project. The built-in 7 inch touchscreen tablet allows you to mark-up, capture and share every change, without ever printing files, saving time and money on ink and media. The SD One MF 44 is an integral part of the design process, by enabling hand drawn or archived documents to be digitised, and modified, marked-up and annotated via the touchscreen tablet. Sharing changes, ideas, and knowledge enables teams to collaborate intelligently and unlock project potential. The SD One MF 44 Scanner includes integrated Cloud support, which allows collaboration with clients, partners and colleagues. Deliver images by email, network, cloud, scan-to-copy, USB and FTP. Or import images directly to standard tablets.



SPECIFICATIONS

The Contex SD One MF 44 Scanner features an optical resolution of 600 dpi and a maximum resolution of 600 dpi with 48-bit data capture for both colour and monochrome scanning. The embedded controller featured on the SD One MF 44 Scanner is a 7″ MultiTouch Screen with a resolution of 800 x 480 pixels. The SD One MF 44 Scanner features a scan speed up to 3.8 inches/second at 150 dpi, 1.9 inches/sec at 300 dpi and 1 inch/sec at 600 dpi when scanning a 24 inch wide document. The SD One MF 44 scans up to 44 inches/1118 mm and can take a maximum media width up to 47.2 inches/1200 mm. All SD One MF Scanners can scan a maximum media thickness of 0.75mm. The SD One MF 44 Scanner support full colour scanning and can colour JPG, TIF or PDF files. The SD One MF 44 weighs 14.1 kg.

The Contex SD One MF 44 Scanner works intelligently as a stand- alone scanner and can be fully integrated with large format printers as an all in one scanning and printing solution. SD One MF 36 Scanner is compatible with all major printer brands, and native printer drivers for HP, Canon, and Epson are included as standard.

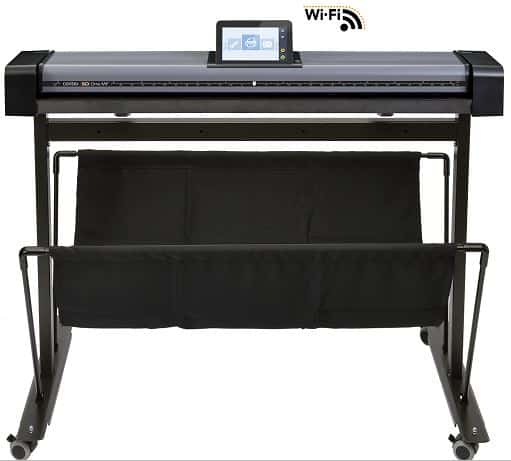

Optional stands are available for combining your Contex SD One MF 44 Scanner with a large format printer. The low stand allows for side by side scanning and printing, includes a paper catcher and features working heights of 810 to 860 mm in 25 mm increments (31.9 to 33.9 inches in 1 inch increments). The high stand features a space-saving design, by stacking the scanner and over the printer, and features working heights from 850 to 1200 mm in 50 mm increments (33.5 to 47.3 inches in approximately 2 inch increments).

As you would expect from Contex, reliable performance is a given. For added peace of mind, the Contex SD One MF 44 Scanner features a 2-year return to factory warranty and a first year on-site swap-out extended warranty. Count on dependable support to create the best image possible from Contex and Design Supply. Ask us at Design Supply, and we can tailor the best solution possible for your needs.

WHAT'S IN THE BOX

Contex SD One MF Scanner: 44 inch with inbuilt 7 inch multi-touch controller and Contex Link application

Cables  as required (2 m Ethernet cable, External power supply)

Installation Sheet

Normalisation and Calibration target

Gigabit Ethernet and WiFi

Nextimage Scan and Copy software embedded in Controller

2 year warranty and fast, easy parts replacement

Options:

Low Stand

High Stand

Large Format Printer

Nextimage REPRO Scan to File to Archive software

Warranty upgrade options (annual price for Year 2 onwards):

Diamond – on-site first 2 years PLUS installation and training

Platinum – on-site first 2 years OR additional years annual cost

Platinum – on-site first 3 years

Gold – swap-out first 2 years OR additional years annual cost

Gold – swap-out first 3 years

Annual on-site supplement for Ireland (£150 plus transport from airport)

Scanner installation and training (1 day)

DATA SHEETS

Contex SD One MF Datasheet

Contex SD One MF Supported Printers list

Contex Nextimage 5 Datasheet

MANUFACTURER INFORMATION

Contex is one of Denmark’s fastest growing IT companies and the world’s largest developer and producer of large format scanning and large format imaging solutions. Originally founded in 1923, the company designed and manufactured inventive, time-saving business machines, including printing machines, mechanical and electronic calculators, and electrostatic copiers, which were distributed and sold worldwide under the Rex-Rotary and Gestetner brand names. By the early 1980s, the foundation for Contex Scanning Technology began and Contex evolved into the leader of the global imaging industry in large format scanning, copying and image enhancement. The development of modular scanning technology began in 1986 and in 1988, Contex introduced its first monochrome large format scanner. Contex released a complete line of monochrome scanners in 1990 and launched its first large format colour scanners in 1996. Today, Contex offers 18″, 25″, 36″, 44″, and 54″ all -in-one, colour and monochrome scanners with CIS (colour image sensors) and CCD (charged-couple device) imaging technology. Over the years, Contex scanners have received numerous awards from leading trade publications and analyst firms including Cadalyst, Wide-Format Imaging, and BERTL (Business Equipment Research and Test Laboratories). Contex provides scanning solutions in over 90 countries and is recognised by a wide range of industries for reliability, value, high-performance and superb image quality.

Contex IQ Quattro 2490, 3600 and 4400 large format scanners are a fourth generation Contex CIS technology using a number of advanced Contex proprietary technologies to achieve superb image quality and reliability. Contex IQ technology includes, CleanScan CIS technology combined with CFR, SIGMA and xDTR to ensure the highest quality CIS scanners in the market. Contex CleanScan CIS technology is based on custom CIS modules with dual-sided LED light and Dual Diffusion, which suppress shadows and unwanted backgrounds. The patented Contex Colour Fringe Removal (CFR) technology is an advanced filtering technology, producing superior image quality with excellent lines. Signal Intensity Matching (SIGMA) is a Contex patented technology that minimises sensor differences live during a scan, to adjust for differences in sensor heating. xDTR improves overall productivity by increasing the data transfer speed of the USB interface, so more image data can be sent to the PC faster. This means a larger document (and more documents) can be scanned at higher resolutions without waiting for data transfer to complete. With xDTR, the IQ Quattro can capture an A1 or D-size colour document in the same time or less than an A” or C-size document with a CIS scanner without xDTR. When batch scanning or scanning at 400 dpi or more, the difference is even greater.

The Contex HD range of CCD large format scanners (HD Ultra X, HD Ultra, HD 5450, and HD iFLEX) is recommended for high productivity and top quality. The Contex HD X range of large format scanners feature advanced Charge Couple Device technology with true 48-bit colour and 16-bit grayscale workflow, 7 x 4, 5 x 4 or 4 x 4 linear colour CCD’s (Red, Green, Blue and Gray), premium custom lenses from Fujifilm, and an advanced image processing algorithm, achieving superior image quality and an optical resolution of up to 1200 dpi and a maximum resolution of 9600 dpi. The Contex HD range of large format scanners have the ability to process the entire range of 48-bit colour data ensuring the most accurate images with Accuracy Lens Enhancement (ALE) ensures precision of 0.1% accuracy. Contex Perfect Light is the latest in LED technology to ensure the highest possible image quality. Contex CCD Scanners (except the iFLEX flatbed) feature Automatic Thickness Adjustment Control (ATAC) and All Wheel Drive (AWD) technologies. ATAC is for scanning thick originals and monitoring pressure on the surface of the document. AWD is a precision paper feed tracking system which ensures a perfectly straight scanning path and distortion-free scans. Gigabit Ethernet, xDTR2 and xDTR improves overall productivity by increasing the data transfer speed, so more image data can be sent to the PC faster.
